Renegade 500

The new Renegade 500 H.O. EFI features a powerful EFI V-twin engine, race-proven suspension, ultra-capable Visco-Lok‡ front differential and aggressive styling for the riders that want to carve trails or head into the backcountry.

  • Rotax 500 H.O. EFI V-Twin engine - the most powerful in its class
  • Visco-Lok 4x4 front differential
  • Strong, lightweight, Surrounding Spar Technology (SSTTM) frame
  • RS-Type double A-arm front suspension
  • RS-Type TTI rear suspension
  • Separate brakes
    • details
  • Center-cast aluminum wheels with ITP‡ Holeshot‡ ATR Tires
  • Motion control font and rear shocks (with five-way preload adjustability)
  • Compact, digital multi-function gauge
  • Four projector beam headlamps (60W)
  • Full floorboards with kick-up footpegs
  • Convenient 1 gal. (3,7 L) storage compartment

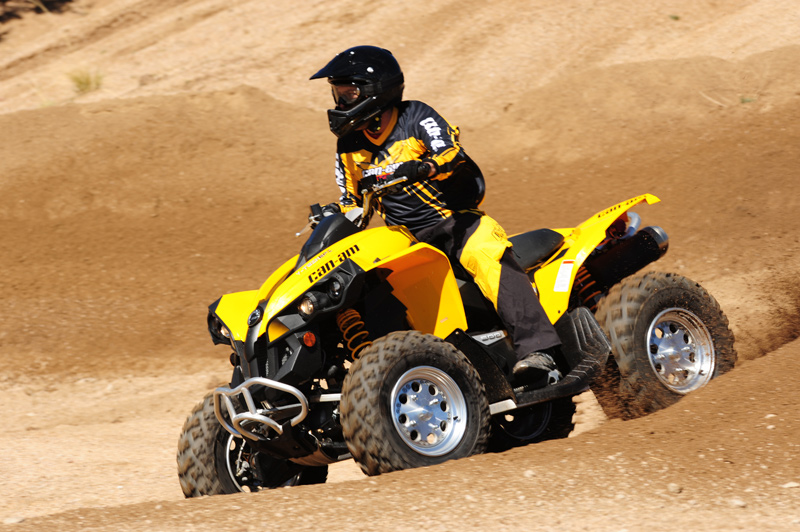

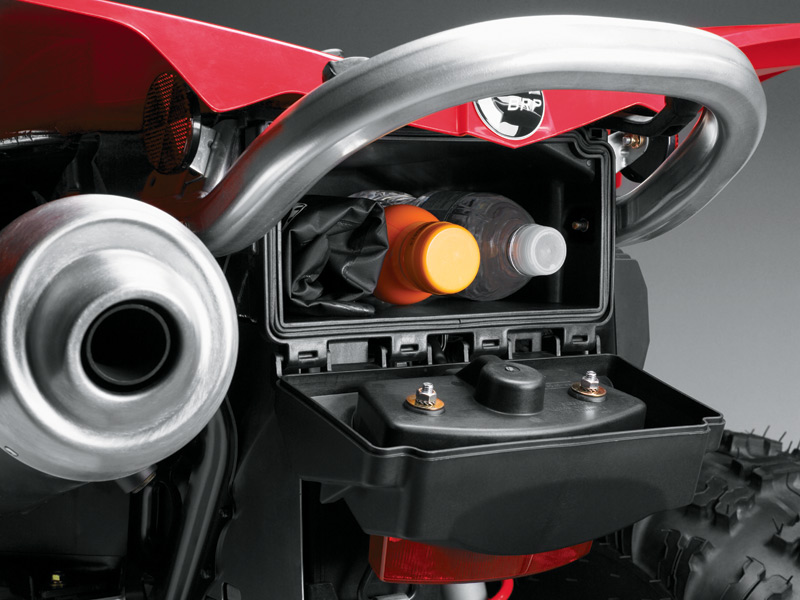

Action ShotRenegade Storage

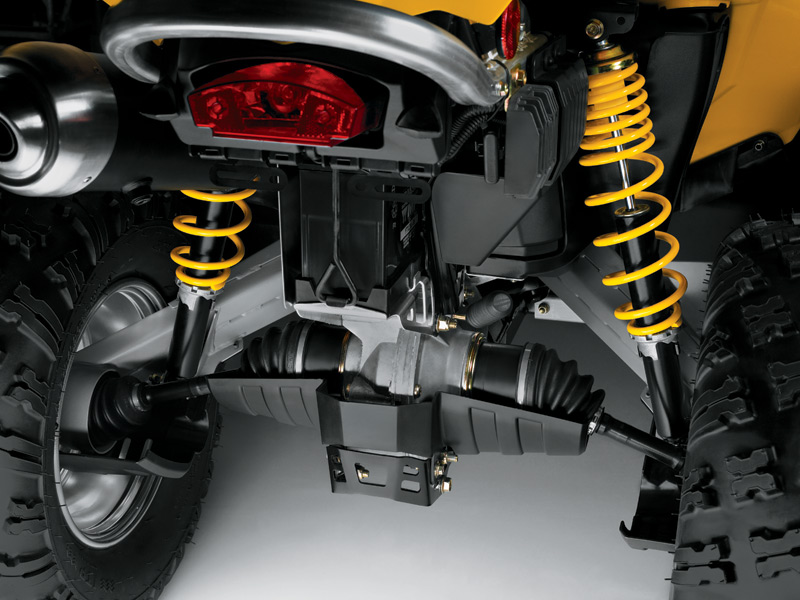

Renegade Suspension

Renegade 500 H.O. EFI Specifications
Features

Instrumentation:

 Multi-function gauge: Speedometer, tachometer, odometer, trip and hourmeters, fuel, gear position, 4x4 indicator, diagnostics, auto shut off
Electrical: Pre wired for winch
Lighting: 4 fender mounted Projector Beam headlamps (60W) with tail light / brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
Available Colors: Yellow
Engine
Type: 499.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve/cyl)
Bore & Stroke 82 x 47 mm
Torque /
Net Power:		 42 Nm@ 6,000 RPM
Carburetion/EFI: 46 mm Throttle Body, 2 Siemens‡ VDO injectors
Starting System: Electric
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train: Selectable 2w/4w shaft driven with Visco-Lok† front differential
Chassis
Frame: SST

Front Suspension
Type:

RS-Type Double A-arm, forged aluminum upper arm
Front Suspension
Travel:		 8.5 in (216 mm)
Rear Suspension
Type:		 RS-Type TTI independent, HPG shocks
Rear Suspension
Travel:		 9 in (229 mm)
Front Brake: 2 Hydraulic discs
Rear Break: 1 inboard hydraulic disc
Front Tires: ITP Holeshot ATRs 25 x 8 x 12 in. (ITP Holeshot ATRs 635 x 203 x 305 mm)
Back Tires: ITP Holeshot ATRs 25 x 10 x 12 in. (ITP Holeshot ATRs 635 x 254 x 305 mm)
Dimensions
L x W x H in: 86 x 46 x 45
L x W x H meter: 2.184 x 1.168 x 1.143
Wheelbase: 51 in. (1.295 m)
Dry Weight: 607 lbs. (280 kg)
Ground
Clearance: 		12 in. (305 mm)
Seat Height: 34.5 in. (877 mm)
Rack Capacity:
(Front & Rear) 		35 lbs. (16 kg), 35 lbs. (16 kg)
Towing Capacity: 1300 lbs. (590 kg)
Fuel Capacity: 5.3 US gal. (20 L)
