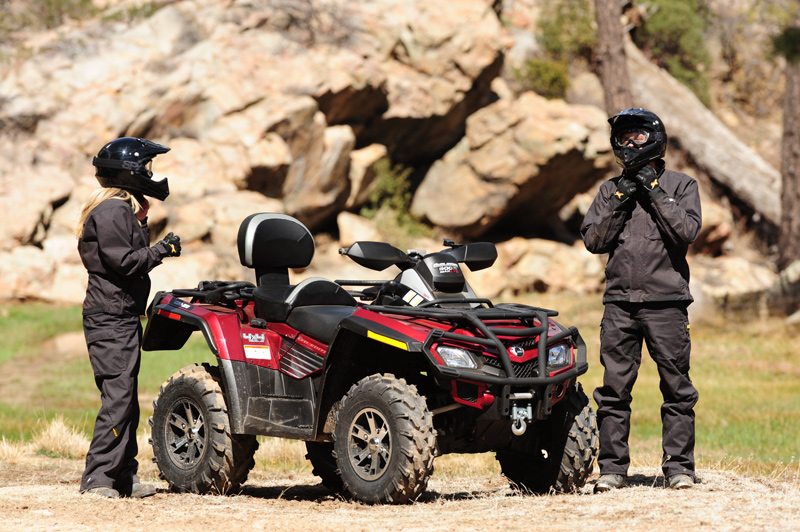

The first luxury touring ATV, loaded with performance and premium features. Also available in a 2 up model. Rotax 800 H.O. EFI V-Twin engine - the industry's most powerful Visco-Lok 4x4 front differential Strong, lightweight, Surrounding Spar Technology (SSTTM) frame Double A-arm front suspension TTI rear suspension Max configuration designed specially for stability and comfort of two riders Multi-function digital gauge Digitally Encoded Security System (D.E.S.S) Limited Features Integrated Garmin color Quest GPS receiver Metallic Steel Grey paint Silver seat trim Special polished cast aluminum rims with painted highlights Chrome muffler trim Fender mudguards Triple-density comfort handgrips XT model features Cast aluminum rims 3000-pound [1,134 kg] BRP XL3000 winch Roller fairlead Handlebar and wired remote winch controls Aggressive tread Carlisle ACT radial tires Heavy-duty front and rear bumpers Handguards Outlander Max LTD 800 Specifications
Features

Instrumentation:	Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature & engine lights, fuel gauge, auto shut off after 15 minutes

Electrical:	Pre wired for winch

Lighting:	2 fender mounted headlamps (35 W) w/ tail light/brake light

DC Outlet:	Lighter type in console, standard connector in the back (15A)

LTD Package Content Available:	BRP XL3000 winch with roller fairlead and wired remote controls Integrated/removable Garmin Quest GPS Painted plastics Exclusive Ltd 6-spoke cast aluminum wheels Aggressive Carlisle ACT radial tires New heavy-duty front & rear bumpers Mudguards Handlebar wind deflectors Premium 2-tone seat Comfort grips Chrome muffler trim New front fascia

Available Colors:	Radiant Red Metallic& Metallic Grey

Engine

Type:	799.9cc, V-twin, liquidcooled, SOHC, 8-valve (4-valve/cyl)

Bore & Stroke	91 x 62 mm

Torque / Net Power:	73 N.m. @ 5500 RPM

Carburetion/EFI:	EFI, 46mm Throttle Body, 2 Siemens VDO injectors

Starting System:	Electric

Transmission:	CVT, sub-transmission with high, low, park, neutral & reverse

Drive Train:	Selectable 2w/4w shaft driven with Visco-Lok† front differential

Chassis

Frame:	SST

Front Suspension Type:	Double A-arm, forged aluminum upper arm

Front Suspension Travel:	8 in (203 mm)

Rear Suspension Type:	TTI independent

Rear Suspension Travel:	9 in (229 mm)

Front Brake:	2 inboard hydraulic discs

Rear Break:	1 inboard hydraulic disc

Front Tires:	26 X 8 X 12 in. (660 x 203 x 305 mm)

Back Tires:	26 X 10 X 12 in. (660 x 254 x 305 mm)

Dimensions

L x W x H in:	94 x 46 x 45

L x W x H meter:	2.387 x 1.168 x 1.143

Wheelbase:	59 in. (1.499 m)

Dry Weight:	636 lbs. (326 kg)

Ground Clearance:	12 in. (305 mm)

Seat Height:	34.5 in. (877 mm)

Rack Capacity: (Front & Rear)	100 lbs. (45 kg), 200 lbs. (90 kg)

Towing Capacity:	1300 lbs. (590 kg)

Fuel Capacity:	5.3 US gal. (20 L)
