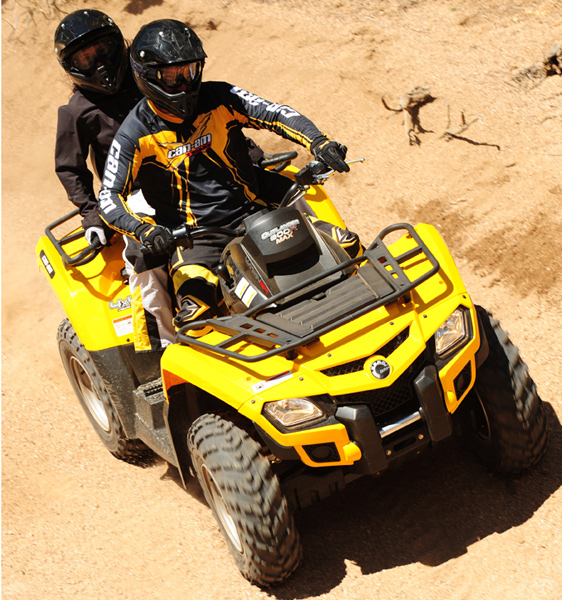

Outlander 800

The most powerful, best handling, most innovative ATV you can buy, period. Also available in a "2 up" model.

  • Rotax 800 H.O. EFI V-Twin engine - the industry's most powerful
  • SST frame
  • Lightweight double A-arm front suspension
  • TTI independent rear suspension
  • Visco-Lok auto-locking front differential
  • Continuously Variable Transmission [CVT]
  • 12 inches [305 mm] of ground clearance
  • Multi-function full digital gauge
  • D.E.S.S. electronic anti-theft system
  • Steel Racks with 300 pound [136 kg] capacity
    • details
  • 26-inch radial tires with steel wheels

XT model features

  • Cast aluminum rims
  • 3000-pound [1,134 kg] BRP XL3000 winch Action Shot
  • Roller fairlead
  • Handlebar and wired remote winch controls
  • Aggressive tread Carlisle ACT radial tires
  • Heavy-duty front and rear bumpers
  • Handguards





Camo

Outlander 800 H.O. EFI Specifications
Features

Instrumentation:

 Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature & engine lights, fuel gauge, auto shut off after 15 minutes
Electrical: Pre wired for winch
Lighting: 2 fender mounted headlamps (35 W) w/ tail light/brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
XT Package Content
Available:		 BRP XL 3000 winch, roller fairlead, wired remote control, cast aluminum rims, agressive tread Carlisle ACT Radial tires, heavy-duty front & rear bumpers, handguards
Available Colors: Camo or Black or Viper Red or Yellow
Engine
Type: 799.9cc, V-twin, liquidcooled, SOHC, 8-valve (4-valve/cyl)
Bore & Stroke 91 x 62 mm
Torque /
Net Power:		 73 N.m. @ 5500 RPM
Carburetion/EFI: EFI, 46 mm throttle body, 2 Siemens VDO injectors
Starting System: Electric
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train: Selectable 2x4/4x4 shaft driven with Visco-Lok front differential
Chassis
Frame: SST

Front Suspension
Type:

RS-Type Double A-arm, forged aluminum upper arm
Front Suspension
Travel:		 8 in (203 mm)
Rear Suspension
Type:		 TTI independent
Rear Suspension
Travel:		 9 in (229 mm)
Front Brake: 2 inboard hydraulic discs
Rear Break: 1 inboard hydraulic disc
Front Tires: 26 X 8 X 12 in. (660 x 203 x 305 mm)
Back Tires: 26 X 10 X 12 in. (660 x 254 x 305 mm)
Dimensions
L x W x H in: 86 x 46 x 45
L x W x H meter:
2.184 x 1.168 x 1.143
Wheelbase: 51 in. (1.295 m)
Dry Weight: 639 lbs. (303 kg)
Ground
Clearance: 		12 in. (305 mm)
Seat Height: 34.5 in. (877 mm)
Rack Capacity:
(Front & Rear) 		100 lbs. (45 kg), 200 lbs. (90 kg)
Towing Capacity: 1300 lbs. (590 kg)
Fuel Capacity: 5.3 US gal. (20 L)
