Outlander 400

The new Outlander 400 comes with the following standard features:

  • Rotax 400 EFI
  • Continuously variable transmission (CVT)
  • MacPherson strut front suspension
  • TTI independent rear suspension
  • Visco-Lok auto-locking front differential
  • SST frame
  • 9.3 inches (236 mm) of ground clearance
  • Multi-Function Digital gauge
  • Steel rack with 100-lb front (45kg) and 200-lb rear (90kg) capacity
  • 25-inch tires
    • details

XT model features

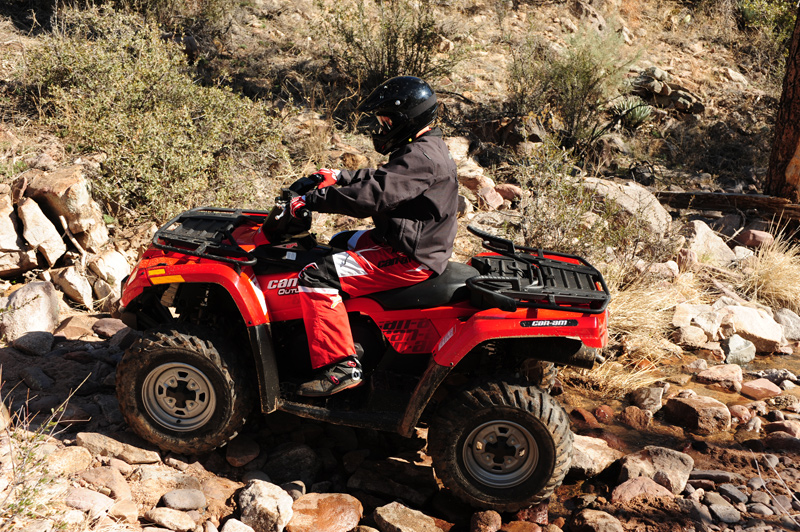

  • New BRP XL3000 winch with roller fairlead as well as handlebar and wired remote controlsAction Shot
  • Cast aluminum rims
  • Aggressive tread Carlisle ACT radial tires
  • Heavy-duty front and rear bumpers
  • Handlebar wind deflectors





Outlander 400 EFI Specifications
Features

Instrumentation:

 Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature & engine lights, fuel gauge, auto shut off after 15 minutes
Electrical: Pre wired for winch
Lighting: 2 fender mounted headlamps (35 W) w/ tail light/brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
XT Package Content
Available:		 BRP XL 3000 winch, roller fairlead, wired remote control, cast aluminum rims, agressive tread Carlisle ACT radial tires, heavy-duty front & rear bumpers, handguards.
Available Colors: Black & Viper Red & Yellow
Engine
Type: 400cc, 4 -stroke,single,liquid-cooled, 4-valve OHC
Bore & Stroke 91 x 61.5 mm
Torque /
Net Power:		 33 Nm @ 5,750 RPM
Carburetion/EFI: 46mm Throttle Body, Siemens VDO injector
Starting System: Electric w/ auxiliary recoil
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train: Selectable 2x4/4x4 shaft driven with Visco-Lok front differential
Chassis
Frame: SST

Front Suspension
Type:

MacPherson
Front Suspension
Travel:		 7 in (178 mm)
Rear Suspension
Type:		 TTI independent
Rear Suspension
Travel:		 9 in (229 mm)
Front Brake: 2 inboard hydraulic discs
Rear Break: 1 inboard hydraulic disc
Front Tires: 25 x 8 x 12 in. (635 x 203 x 305 mm)
Back Tires: 25 x 10 x 12 in. (635 x 254 x 305 mm)
Dimensions
L x W x H in: 86 x 46 x 45
L x W x H meter:
2.184 x 1.168 x 1.143
Wheelbase: 49 in. (1.244 m)
Dry Weight:
607 lbs. (284 kg)
Ground
Clearance:
9.3 in. (236 mm)
Seat Height: 35 in. (877 mm)
Rack Capacity:
(Front & Rear) 		100 lbs. (45 kg), 200 lbs. (90 kg)
Towing Capacity: 1100 lbs. (590 kg)
Fuel Capacity: 4.2 US gal. (16 L)
