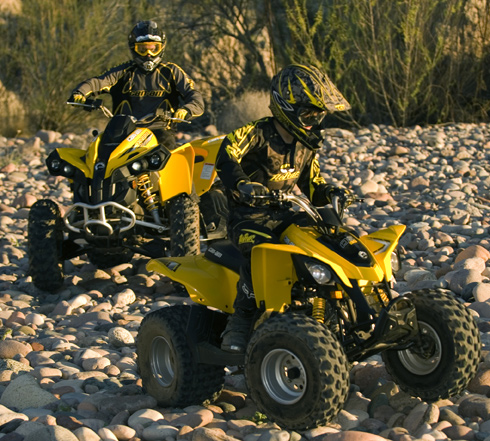

The 2009 DS 70 has fun features for kids and peace-of-mind for parents. All-new Easy-to-operate 70cc four-stroke engine Continously Variable Transmission (CVT) means no shifting: Forward, Neutral, Reverse Long-travel Suspension Cool styling reflecting the Can-Am sport quad DNA Throttle limiter, full floorboards, day lights Ergonomics specifically designed for kids. DS 70 Specifications
Features


Available Colors:	Yellow

Engine

Type:	70cc, 4-stroke, single, force air-cooled, 2-valve

Bore & Stroke	47 x 40 mm

Carburetion/EFI:	Carburation, Mukini VM-16

Starting System:	Electric & kick start

Transmission:	Automatic CVT

Drive Train:	Chain driven/solid axle

Chassis

Frame:	DS 70

Front Suspension Type:	Independant A-arm

Front Suspension Travel:	3.4 in (86 mm)

Rear Suspension Type:	Single shock

Rear Suspension Travel:	6.3 in (160 mm)

Front Brake:	Double drum

Rear Break:	Drum

Front Tires:	19 x 7 x 8 in. (483 x 178 x 203 mm)

Back Tires:	18 x 9.5 x 8 in. (457 x 241 x 203 mm)

Dimensions

L x W x H in:	59.8 x 35.6 x 36.8

L x W x H meter:	1.52 x 905 x 935

Wheelbase:	39 in. (1 m)

Dry Weight:	245 lbs. (111 kg)

Ground Clearance:	8.3 in. (210 mm)

Seat Height:	27 in. (685 mm)

Fuel Capacity:	1.6 US gal. (6 L)
